Reid Washbon Racing Products

High Performance Racing Collectors

  • Reid Washbon Racing Collectors (sometimes referred to as Merge Collectors) are 100% Argon purge welded inside and out for superior endurance and durability.
  • Slip joints for primary tubes are standard and can be sized per customer preferences
  • Double slip joint styles are also available
  • Standard sizes - 2-1, 3-1, 4-1 are stocked in several wall thicknesses in both 304 & 321 stainless
  • 5-1, 6-1 or special configuration styles are easily fabricated in house from our extensive inventory of pre-bent collector bends; usually in 1-2 days lead time.
  • Custom Collectors can be ordered with bend degrees from10° to 40°.

Contact us to discuss your specific design criteria.



Standard Collector Configurations

Our standard Collectors are fabricated from pre-bent tubing from 13° to 16° depending on the outlet diameter and overall length.  Outlet diameter is sized per customer requirement.

Style
PRIMARY
DIAMETER		 2 TO 1 3 TO 1 4 TO 1
1 1/4” X X X
1 3/8" X X X
1 1/2" X X X
1 5/8" X X X
1 3/4" X X X
1 7/8" X X X
2" X X X
2 1/8" X X X
2 1/4" X X X
2 3/8" X X X
2 1/2" X X X
2 5/8" X S.O S.O
2 3/4" X S.O S.O
3" X
3 1/2" X
S.O. = Special Order























Available Materials & Wall thickness:

M.S. = Mild Steel 16ga (.065 nom), 18ga. (.049 nom)
304 Stainless  035, 049, 065, 083
321 Stainless  020, 028, 035, 049, 065, 083
625 Inconel  020, 028, 035, 049, 065

Note: Not all diameter/wall thickness combinations are available in all materials



Outlet Options:





Additional Hardware:

  • Bolt Loops or Retention Tabs
  • Lambda or Oxygen Sensor Bung
  • Thermocouple or other threaded Bungs

Outlet options and additional hardware can be purchased separately or be added by our fabrication department for a finished assembly, ready to run.

Please see our extensive offering of tubing bends, flanges & clamps to complement
your collector order.



Additional Collectors:

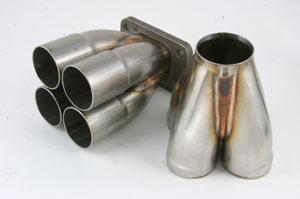

  • 20° or 25° short Collectors

  • Double slip Collectors

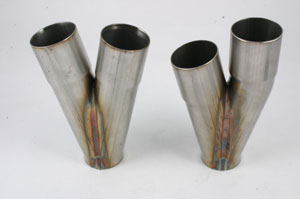

  • Splayed Collectors

  • Unusual Configuration Collectors
